Eagle Group 314-16-4-24R

Description

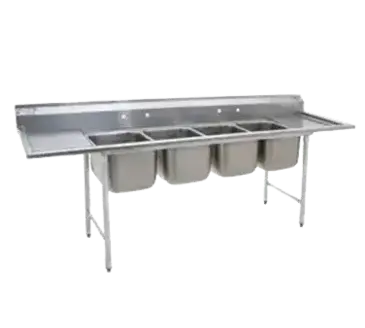

The Eagle Group 314-16-4-24R is a four-compartment sink designed for durability and efficiency in commercial kitchens. Constructed from high-quality 304 stainless steel, this sink measures 98-1/8"W x 27-1/2"D, featuring coved corners for easy cleaning. Each compartment is 16" wide, 20" front-to-back, and 13-1/2" deep, providing ample space for washing and rinsing. A 24" drainboard is conveniently located on the right side, enhancing workflow. The sink includes a 9-1/2"H backsplash with a 1" upturn and tile edge, ensuring a seamless installation against walls. It is equipped with two sets of 8" OC splash mount faucet holes for easy faucet installation. The design features 2" euro-style edges on the front and sides, adding a modern touch. Included are four 3-1/2" basket drains for efficient drainage. The sink is supported by sturdy galvanized legs and side crossrails, with adjustable bullet feet for stability on uneven surfaces. NSF certified for safety and sanitation, this sink is an ideal choice for any busy kitchen environment.

Crumb Cup Strainer Assembly, with 1-1/2" outlet +$14.23 Lever Handle Drain, 1-1/2" or 2" IPS connection +$153.36 Lever Handle Drain, 2" IPS connection +$153.36 Lever Handle Drain, with 2" IPS connection & overflow +$312.41 Rotary Drain, nickel-plated solid brass, with 1-1/2" or 2" NPS connection +$259.28 Twist Handle Drain, 1-1/2 or 2" NPS connection +$160.31 Twist Handle Drain, 2" NPS connection +$160.31 Twist Handle Drain, with overflow, 2" NPS connection & overflow +$363.31 Twist brackets for 4 comp 412, 414 & 314 sinks +$76.84

Faucet, 12" long, splash-mounted mixing faucet, 8" centers, swing nozzle, heavy duty +$355.72 Faucet, 12" long, splash-mounted mixing faucet, 8" centers, swing nozzle, NSF +$147.03 Faucet, 14" long, splash-mounted mixing faucet, 8" centers, swing nozzle, heavy duty +$360.15 Faucet, 14" long, splash-mounted mixing faucet, 8" centers, swing nozzle, NSF +$152.41 Faucet, 19" long, splash-mounted mixing faucet, 8" centers, double-joint nozzle (NOT available on 1-compartment sinks up to 22" long) +$399.36 Faucet, 8" centers, splash-mounted, 16" spout (NOT available on 1-compartment sinks up to 22" long), NSF +$153.36 Faucet, 8" centers, splash-mounted, 8" spout, NSF +$144.19 Faucet, splash-mounted, 8" OC, gooseneck +$106.56 Pre-Rinse Spray Unit, splash mount +$736.11 T&S Faucet, splash-mounted, 8" centers, 10" swing nozzle, extra heavy-duty +$393.04 T&S Faucet, splash-mounted, 8" centers, 12" swing spout, extra heavy duty, NSF +$394.30 T&S Faucet, splash-mounted, 8" centers, 14" swing spout, extra heavy duty, NSF +$398.10 T&S Faucet, splash-mounted, 8" centers, 8" swing spout, extra-heavy duty, NSF +$384.82 T&S Pre-Rinse Spray, splash mount 8" centers, with wall bracket, extra heavy-duty +$962.83

Kit A, stainless steel crossbraced legs, gussets, feet & (2) T&S faucet #313293, add suffix "-CLF" to model number +$1,183.85 Kit B, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (4) lever waste, add suffix "-CLFD" to model number +$1,792.85 Kit C, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (4) lever waste with overflow, add suffix "-CLFDO" to model number +$2,433.79 Kit D, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (4) twist handle drain, add suffix "-CLFDT" to model number +$1,825.42 Kit E, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (4) twist handle drain with overflow, add suffix "-CLFDOT" to model number +$2,634.89

Left-to-right crossbracing, galvanized, add -CBG model number SURCHARGE: 5% +$198.62 Left-to-right crossbracing, stainless steel, add -CBS model number SURCHARGE: 10% +$397.23 Stainless steel legs & gussets, for 314, 412 & 414 series sinks +$327.58 stainless steel legs with front-to-back crossbracing (stainless steel feet not included) +$236.83

Additional Information

Brand	Eagle Group
Number of Drainboards	1
Gauge	16 Gauge
Certifications	NSF
Drainboard Types	Right
Construction	Stainless and Galvanized Steel
Number of Compartments	4
Dimension	23-1/4"W x 27-1/2"D
Material	Galvanized Steel
Width (in)	98.13
Height (in)	44
Depth (in)	27.5
Weight	150
