Eagle Group 314-16-4

Description

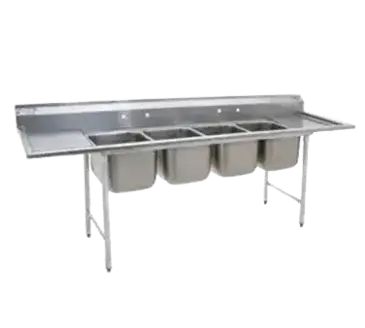

The Eagle Group 314-16-4 is a durable four-compartment sink designed for efficiency and functionality in commercial kitchens. Constructed from high-quality 304 stainless steel, this sink features coved corners for easy cleaning and maintenance. Each compartment measures 16" wide, 20" front-to-back, and 13-1/2" deep, providing ample space for washing and rinsing. The sink includes a 9-1/2"H backsplash with a 1" upturn and tile edge to protect walls from splashes. It is equipped with two sets of 8" OC splash mount faucet holes for versatile faucet installation. The euro-style edges on the front and sides enhance its modern aesthetic while ensuring durability. The sink comes with four 3-1/2" basket drains for efficient drainage. Its sturdy galvanized legs and side crossrails provide stability, while adjustable bullet feet allow for easy leveling on uneven surfaces. This sink is NSF certified, ensuring it meets strict health and safety standards.

Crumb Cup Strainer Assembly, with 1-1/2" outlet +$14.23 Lever Handle Drain, 1-1/2" or 2" IPS connection +$153.36 Lever Handle Drain, 2" IPS connection +$153.36 Lever Handle Drain, with 2" IPS connection & overflow +$312.41 Rotary Drain, nickel-plated solid brass, with 1-1/2" or 2" NPS connection +$259.28 Twist Handle Drain, 1-1/2 or 2" NPS connection +$160.31 Twist Handle Drain, 2" NPS connection +$160.31 Twist Handle Drain, with overflow, 2" NPS connection & overflow +$363.31 Twist brackets for 4 comp 412, 414 & 314 sinks +$76.84

Faucet, 12" long, splash-mounted mixing faucet, 8" centers, swing nozzle, heavy duty +$355.72 Faucet, 12" long, splash-mounted mixing faucet, 8" centers, swing nozzle, NSF +$147.03 Faucet, 14" long, splash-mounted mixing faucet, 8" centers, swing nozzle, heavy duty +$360.15 Faucet, 14" long, splash-mounted mixing faucet, 8" centers, swing nozzle, NSF +$152.41 Faucet, 19" long, splash-mounted mixing faucet, 8" centers, double-joint nozzle (NOT available on 1-compartment sinks up to 22" long) +$399.36 Faucet, 8" centers, splash-mounted, 16" spout (NOT available on 1-compartment sinks up to 22" long), NSF +$153.36 Faucet, 8" centers, splash-mounted, 8" spout, NSF +$144.19 Faucet, splash-mounted, 8" OC, gooseneck +$106.56 Pre-Rinse Spray Unit, splash mount +$736.11 T&S Faucet, splash-mounted, 8" centers, 10" swing nozzle, extra heavy-duty +$393.04 T&S Faucet, splash-mounted, 8" centers, 12" swing spout, extra heavy duty, NSF +$394.30 T&S Faucet, splash-mounted, 8" centers, 14" swing spout, extra heavy duty, NSF +$398.10 T&S Faucet, splash-mounted, 8" centers, 8" swing spout, extra-heavy duty, NSF +$384.82 T&S Pre-Rinse Spray, splash mount 8" centers, with wall bracket, extra heavy-duty +$962.83

Kit A, stainless steel crossbraced legs, gussets, feet & (2) T&S faucet #313293, add suffix "-CLF" to model number +$1,183.85 Kit B, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (4) lever waste, add suffix "-CLFD" to model number +$1,792.85 Kit C, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (4) lever waste with overflow, add suffix "-CLFDO" to model number +$2,433.79 Kit D, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (4) twist handle drain, add suffix "-CLFDT" to model number +$1,825.42 Kit E, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (4) twist handle drain with overflow, add suffix "-CLFDOT" to model number +$2,634.89

Left-to-right crossbracing, galvanized, add -CBG model number SURCHARGE: 5% +$166.07 Left-to-right crossbracing, stainless steel, add -CBS model number SURCHARGE: 10% +$332.13 Stainless steel legs & gussets, for 314, 412 & 414 series sinks +$327.58 stainless steel legs with front-to-back crossbracing (stainless steel feet not included) +$236.83

Additional Information

Brand	Eagle Group
Gauge	16 Gauge
Certifications	NSF
Construction	Stainless and Galvanized Steel
Number of Compartments	4
Dimension	23-1/4"W x 27-1/2"D
Material	Galvanized Steel
Width (in)	75
Height (in)	44
Depth (in)	26
Weight	125
