Eagle Group 314-18-4-24R

Description

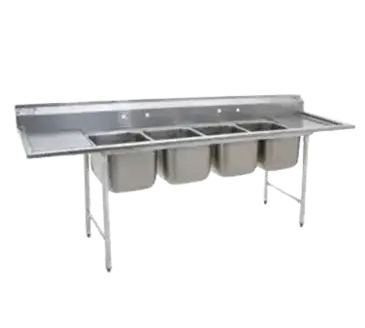

The Eagle Group 314-18-4-24R is a robust four-compartment sink designed for commercial kitchens. Constructed from durable 304 stainless steel, it measures 106-3/4"W x 31-3/4"D, ensuring ample workspace. Each compartment is 18" wide, 24" front-to-back, and 13-1/2" deep, providing generous capacity for washing and rinsing. The sink features coved corners for easy cleaning and a 24" drainboard on the right side for efficient drying and food prep. A 9-1/2"H backsplash with a 1" upturn and tile edge helps protect walls from splashes. It includes two sets of 8" OC splash mount faucet holes for versatile faucet installation. The euro-style edges on the front and sides enhance both aesthetics and functionality. The sink comes equipped with four 3-1/2" basket drains, galvanized legs, and side crossrails for stability, along with adjustable bullet feet for leveling. NSF certified for safety and sanitation, this sink is an ideal choice for any busy kitchen environment.

Crumb Cup Strainer Assembly, with 1-1/2" outlet +$14.23 Lever Handle Drain, 1-1/2" or 2" IPS connection +$153.36 Lever Handle Drain, 2" IPS connection +$153.36 Lever Handle Drain, with 2" IPS connection & overflow +$312.41 Rotary Drain, nickel-plated solid brass, with 1-1/2" or 2" NPS connection +$259.28 Twist Handle Drain, 1-1/2 or 2" NPS connection +$160.31 Twist Handle Drain, 2" NPS connection +$160.31 Twist Handle Drain, with overflow, 2" NPS connection & overflow +$363.31 Twist brackets for 4 comp 412, 414 & 314 sinks +$76.84

Faucet, 12" long, splash-mounted mixing faucet, 8" centers, swing nozzle, heavy duty +$355.72 Faucet, 12" long, splash-mounted mixing faucet, 8" centers, swing nozzle, NSF +$147.03 Faucet, 14" long, splash-mounted mixing faucet, 8" centers, swing nozzle, heavy duty +$360.15 Faucet, 14" long, splash-mounted mixing faucet, 8" centers, swing nozzle, NSF +$152.41 Faucet, 19" long, splash-mounted mixing faucet, 8" centers, double-joint nozzle (NOT available on 1-compartment sinks up to 22" long) +$399.36 Faucet, 8" centers, splash-mounted, 16" spout (NOT available on 1-compartment sinks up to 22" long), NSF +$153.36 Faucet, 8" centers, splash-mounted, 8" spout, NSF +$144.19 Faucet, splash-mounted, 8" OC, gooseneck +$106.56 Pre-Rinse Spray Unit, splash mount +$736.11 T&S Faucet, splash-mounted, 8" centers, 10" swing nozzle, extra heavy-duty +$393.04 T&S Faucet, splash-mounted, 8" centers, 12" swing spout, extra heavy duty, NSF +$394.30 T&S Faucet, splash-mounted, 8" centers, 14" swing spout, extra heavy duty, NSF +$398.10 T&S Faucet, splash-mounted, 8" centers, 8" swing spout, extra-heavy duty, NSF +$384.82 T&S Pre-Rinse Spray, splash mount 8" centers, with wall bracket, extra heavy-duty +$962.83

Kit A, stainless steel crossbraced legs, gussets, feet & (2) T&S faucet #313293, add suffix "-CLF" to model number +$1,183.85 Kit B, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (4) lever waste, add suffix "-CLFD" to model number +$1,792.85 Kit C, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (4) lever waste with overflow, add suffix "-CLFDO" to model number +$2,433.79 Kit D, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (4) twist handle drain, add suffix "-CLFDT" to model number +$1,825.42 Kit E, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (4) twist handle drain with overflow, add suffix "-CLFDOT" to model number +$2,634.89

Left-to-right crossbracing, galvanized, add -CBG model number SURCHARGE: 5% +$232.76 Left-to-right crossbracing, stainless steel, add -CBS model number SURCHARGE: 10% +$465.53 Stainless steel legs & gussets, for 314, 412 & 414 series sinks +$327.58 stainless steel legs with front-to-back crossbracing (stainless steel feet not included) +$236.83

Additional Information

Brand	Eagle Group
Number of Drainboards	1
Gauge	16 Gauge
Certifications	NSF
Drainboard Types	Right
Construction	Stainless and Galvanized Steel
Number of Compartments	4
Dimension	25-1/2"W x 31-3/4"D
Material	Galvanized Steel
Width (in)	106.75
Height (in)	44
Depth (in)	31.75
Weight	160
