Eagle Group 314-22-3-24R

Description

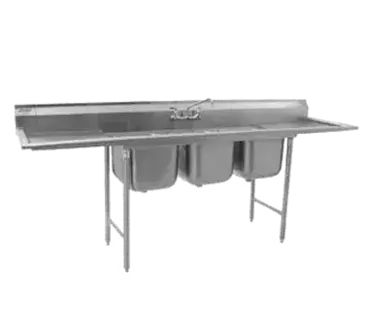

The Eagle Group 314-22-3-24R is a robust three-compartment sink designed for commercial kitchens. Measuring 99"W x 29-3/4"D, it features durable 304 stainless steel construction, ensuring longevity and resistance to corrosion. Each compartment measures 22" x 22" x 13-1/2" deep, providing ample space for washing, rinsing, and sanitizing. The sink includes a 24" drainboard on the right side for efficient drying and prep work. Designed for convenience, it has a 9-1/2"H backsplash with a 1" upturn and tile edge to protect walls from splashes. The sink is equipped with two sets of 8" OC splash mount faucet holes, allowing for easy installation of faucets. The euro-style edges on the front and sides enhance its sleek appearance while facilitating easy cleaning. Included with the sink are three 3-1/2" basket drains for effective drainage, along with galvanized legs and side crossrails for stability. The adjustable bullet feet ensure the sink can be leveled on uneven surfaces. This sink is NSF certified, meeting strict public health standards for safety and sanitation.

Crumb Cup Strainer Assembly, with 1-1/2" outlet +$14.23 Lever Handle Drain, 1-1/2" or 2" IPS connection +$153.36 Lever Handle Drain, 2" IPS connection +$153.36 Lever Handle Drain, with 2" IPS connection & overflow +$312.41 Rotary Drain, nickel-plated solid brass, with 1-1/2" or 2" NPS connection +$259.28 Twist Handle Drain, 1-1/2 or 2" NPS connection +$160.31 Twist Handle Drain, 2" NPS connection +$160.31 Twist Handle Drain, with overflow, 2" NPS connection & overflow +$363.31 Twist brackets for 3 comp 412, 414 & 314 sinks +$58.18

Faucet, 12" long, splash-mounted mixing faucet, 8" centers, swing nozzle, heavy duty +$355.72 Faucet, 12" long, splash-mounted mixing faucet, 8" centers, swing nozzle, NSF +$147.03 Faucet, 14" long, splash-mounted mixing faucet, 8" centers, swing nozzle, heavy duty +$360.15 Faucet, 14" long, splash-mounted mixing faucet, 8" centers, swing nozzle, NSF +$152.41 Faucet, 19" long, splash-mounted mixing faucet, 8" centers, double-joint nozzle (NOT available on 1-compartment sinks up to 22" long) +$399.36 Faucet, 8" centers, splash-mounted, 16" spout (NOT available on 1-compartment sinks up to 22" long), NSF +$153.36 Faucet, 8" centers, splash-mounted, 8" spout, NSF +$144.19 Faucet, splash-mounted, 8" OC, gooseneck +$106.56 Pre-Rinse Spray Unit, splash mount +$736.11 T&S Faucet, splash-mounted, 8" centers, 10" swing nozzle, extra heavy-duty +$393.04 T&S Faucet, splash-mounted, 8" centers, 12" swing spout, extra heavy duty, NSF +$394.30 T&S Faucet, splash-mounted, 8" centers, 14" swing spout, extra heavy duty, NSF +$398.10 T&S Faucet, splash-mounted, 8" centers, 8" swing spout, extra-heavy duty, NSF +$384.82 T&S Pre-Rinse Spray, splash mount 8" centers, with wall bracket, extra heavy-duty +$962.83

Kit A, stainless steel crossbraced legs, gussets, feet & (2) T&S faucet #313293, add suffix "-CLF" to model number +$1,183.85 Kit B, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (3) lever waste, add suffix "-CLFD" to model number +$1,639.81 Kit C, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (3) lever waste with overflow, add suffix "-CLFDO" to model number +$2,121.39 Kit D, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (3) twist handle drain, add suffix "-CLFDT" to model number +$1,665.11 Kit E, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (3) twist handle drain with overflow, add suffix "-CLFDOT" to model number +$2,271.90

Left-to-right crossbracing, galvanized, add -CBG model number SURCHARGE: 5% +$198.51 Left-to-right crossbracing, stainless steel, add -CBS model number SURCHARGE: 10% +$397.02 Stainless steel legs & gussets, for 314, 412 & 414 series sinks +$327.58 stainless steel legs with front-to-back crossbracing (stainless steel feet not included) +$236.83

Additional Information

Brand	Eagle Group
Number of Drainboards	1
Gauge	16 Gauge
Leg Construction	Galvanized Steel Legs
Certifications	NSF
Drainboard Types	Right
Number of Compartments	3
Construction	Stainless and Galvanized Steel
Drainboards	With Right-hand Drainboard
Material	Stainless Steel
Width (in)	99
Height (in)	44
Depth (in)	29.75
Weight	145
