Eagle Group 314-22-3

Description

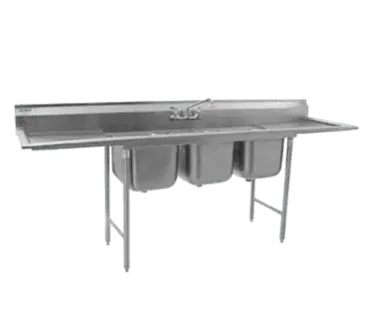

The Eagle Group 314-22-3 is a durable three-compartment sink designed for efficiency and functionality in commercial kitchens. Constructed from high-quality 304 stainless steel, this sink measures 77-1/2"W x 29-3/4"D and features coved corners for easy cleaning. Each compartment measures 22" x 22" x 13-1/2" deep, providing ample space for washing, rinsing, and soaking. The sink is equipped with a 9-1/2"H backsplash that includes a 1" upturn and tile edge, ensuring a seamless fit against walls. It offers two sets of 8" OC splash mount faucet holes for versatile faucet installation. The front and sides feature 2" euro-style edges for a sleek appearance. Included with the sink are three 3-1/2" basket drains for efficient drainage. The galvanized legs and side crossrails provide sturdy support, while adjustable bullet feet ensure stability on uneven surfaces. This sink is NSF certified, meeting strict public health standards for safety and sanitation.

Crumb Cup Strainer Assembly, with 1-1/2" outlet +$14.23 Lever Handle Drain, 1-1/2" or 2" IPS connection +$153.36 Lever Handle Drain, 2" IPS connection +$153.36 Lever Handle Drain, with 2" IPS connection & overflow +$312.41 Rotary Drain, nickel-plated solid brass, with 1-1/2" or 2" NPS connection +$259.28 Twist Handle Drain, 1-1/2 or 2" NPS connection +$160.31 Twist Handle Drain, 2" NPS connection +$160.31 Twist Handle Drain, with overflow, 2" NPS connection & overflow +$363.31 Twist brackets for 3 comp 412, 414 & 314 sinks +$58.18

Faucet, 12" long, splash-mounted mixing faucet, 8" centers, swing nozzle, heavy duty +$355.72 Faucet, 12" long, splash-mounted mixing faucet, 8" centers, swing nozzle, NSF +$147.03 Faucet, 14" long, splash-mounted mixing faucet, 8" centers, swing nozzle, heavy duty +$360.15 Faucet, 14" long, splash-mounted mixing faucet, 8" centers, swing nozzle, NSF +$152.41 Faucet, 19" long, splash-mounted mixing faucet, 8" centers, double-joint nozzle (NOT available on 1-compartment sinks up to 22" long) +$399.36 Faucet, 8" centers, splash-mounted, 16" spout (NOT available on 1-compartment sinks up to 22" long), NSF +$153.36 Faucet, 8" centers, splash-mounted, 8" spout, NSF +$144.19 Faucet, splash-mounted, 8" OC, gooseneck +$106.56 Pre-Rinse Spray Unit, splash mount +$736.11 T&S Faucet, splash-mounted, 8" centers, 10" swing nozzle, extra heavy-duty +$393.04 T&S Faucet, splash-mounted, 8" centers, 12" swing spout, extra heavy duty, NSF +$394.30 T&S Faucet, splash-mounted, 8" centers, 14" swing spout, extra heavy duty, NSF +$398.10 T&S Faucet, splash-mounted, 8" centers, 8" swing spout, extra-heavy duty, NSF +$384.82 T&S Pre-Rinse Spray, splash mount 8" centers, with wall bracket, extra heavy-duty +$962.83

Kit A, stainless steel crossbraced legs, gussets, feet & (2) T&S faucet #313293, add suffix "-CLF" to model number +$1,183.85 Kit B, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (3) lever waste, add suffix "-CLFD" to model number +$1,639.81 Kit C, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (3) lever waste with overflow, add suffix "-CLFDO" to model number +$2,121.39 Kit D, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (3) twist handle drain, add suffix "-CLFDT" to model number +$1,665.11 Kit E, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (3) twist handle drain with overflow, add suffix "-CLFDOT" to model number +$2,271.90

Left-to-right crossbracing, galvanized, add -CBG model number SURCHARGE: 5% +$155.73 Left-to-right crossbracing, stainless steel, add -CBS model number SURCHARGE: 10% +$311.46 Stainless steel legs & gussets, for 314, 412 & 414 series sinks +$327.58 stainless steel legs with front-to-back crossbracing (stainless steel feet not included) +$236.83

Additional Information

Brand	Eagle Group
Gauge	16 Gauge
Leg Construction	Galvanized Steel Legs
Certifications	NSF
Number of Compartments	3
Construction	Stainless and Galvanized Steel
Drainboards	without Drainboard
Material	Stainless Steel
Width (in)	77.5
Height (in)	44
Depth (in)	29.75
Weight	120
