Eagle Group 314-24-4-24

Description

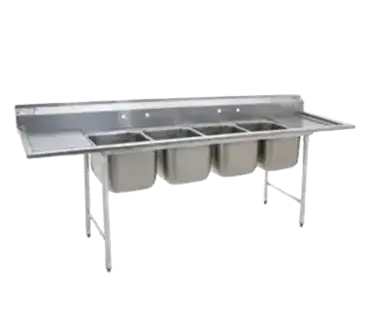

The Eagle Group 314-24-4-24 is a robust four-compartment sink designed for commercial kitchens. Constructed from durable 304 stainless steel, it measures 152"W x 31-3/4"D and features coved corners for easy cleaning. Each compartment measures 24" x 24" x 13-1/2" deep, providing ample space for washing and rinsing. The sink includes 24" drainboards on both the left and right sides for efficient workflow. A 9-1/2"H backsplash with a 1" upturn and tile edge helps protect walls from splashes. It is equipped with two sets of 8" OC splash mount faucet holes for versatile faucet installation. The design incorporates 2" euro-style edges on the front and sides, enhancing its aesthetic appeal. The sink comes with four 3-1/2" basket drains, galvanized legs, and side crossrails for stability, along with adjustable bullet feet for leveling. NSF certified for safety and sanitation, this sink is an ideal choice for any busy kitchen environment.

Crumb Cup Strainer Assembly, with 1-1/2" outlet +$14.23 Lever Handle Drain, 1-1/2" or 2" IPS connection +$153.36 Lever Handle Drain, 2" IPS connection +$153.36 Lever Handle Drain, with 2" IPS connection & overflow +$312.41 Rotary Drain, nickel-plated solid brass, with 1-1/2" or 2" NPS connection +$259.28 Twist Handle Drain, 1-1/2 or 2" NPS connection +$160.31 Twist Handle Drain, 2" NPS connection +$160.31 Twist Handle Drain, with overflow, 2" NPS connection & overflow +$363.31 Twist brackets for 4 comp 412, 414 & 314 sinks +$76.84

Faucet, 12" long, splash-mounted mixing faucet, 8" centers, swing nozzle, heavy duty +$355.72 Faucet, 12" long, splash-mounted mixing faucet, 8" centers, swing nozzle, NSF +$147.03 Faucet, 14" long, splash-mounted mixing faucet, 8" centers, swing nozzle, heavy duty +$360.15 Faucet, 14" long, splash-mounted mixing faucet, 8" centers, swing nozzle, NSF +$152.41 Faucet, 19" long, splash-mounted mixing faucet, 8" centers, double-joint nozzle (NOT available on 1-compartment sinks up to 22" long) +$399.36 Faucet, 8" centers, splash-mounted, 16" spout (NOT available on 1-compartment sinks up to 22" long), NSF +$153.36 Faucet, 8" centers, splash-mounted, 8" spout, NSF +$144.19 Faucet, splash-mounted, 8" OC, gooseneck +$106.56 Pre-Rinse Spray Unit, splash mount +$736.11 T&S Faucet, splash-mounted, 8" centers, 10" swing nozzle, extra heavy-duty +$393.04 T&S Faucet, splash-mounted, 8" centers, 12" swing spout, extra heavy duty, NSF +$394.30 T&S Faucet, splash-mounted, 8" centers, 14" swing spout, extra heavy duty, NSF +$398.10 T&S Faucet, splash-mounted, 8" centers, 8" swing spout, extra-heavy duty, NSF +$384.82 T&S Pre-Rinse Spray, splash mount 8" centers, with wall bracket, extra heavy-duty +$962.83

Kit A, stainless steel crossbraced legs, gussets, feet & (2) T&S faucet #313293, add suffix "-CLF" to model number +$1,183.85 Kit B, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (4) lever waste, add suffix "-CLFD" to model number +$1,792.85 Kit C, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (4) lever waste with overflow, add suffix "-CLFDO" to model number +$2,433.79 Kit D, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (4) twist handle drain, add suffix "-CLFDT" to model number +$1,825.42 Kit E, stainless steel crossbraced legs, gussets, feet, (2) T&S faucet #313293 & (4) twist handle drain with overflow, add suffix "-CLFDOT" to model number +$2,634.89

Left-to-right crossbracing, galvanized, add -CBG model number SURCHARGE: 5% +$300.45 Left-to-right crossbracing, stainless steel, add -CBS model number SURCHARGE: 10% +$600.90 Stainless steel legs & gussets, for 314, 412 & 414 series sinks +$327.58 stainless steel legs with front-to-back crossbracing (stainless steel feet not included) +$236.83

Additional Information

Brand	Eagle Group
Number of Drainboards	2
Certifications	NSF
Construction	Stainless and Galvanized Steel
Number of Compartments	4
Dimension	31-1/2"W x 31-3/4"D
Material	Galvanized Steel
Width (in)	152
Height (in)	44
Depth (in)	31.75
Weight	203
