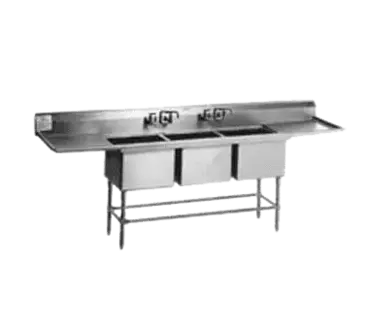

Eagle Group FN2472-3-30R-14/3

Description

The Eagle Group FN2472-3-30R-14/3 is a durable three-compartment sink designed for commercial kitchens. Measuring 109-1/2"W x 31"D, it features a robust 14-gauge 304 stainless steel top with coved corners for easy cleaning. Each compartment measures 24" x 24" x 14" deep, providing ample space for washing, rinsing, and sanitizing. A 30" drainboard on the right enhances workflow efficiency. The sink includes a 9-1/2"H backsplash with a 1" upturn and tile edge to protect walls from water damage. It is equipped with two sets of 8" OC splash mount faucet holes for easy installation of faucets. The rolled edges on the front and sides add to its sleek design while ensuring safety. Additional features include 3-1/2" basket drains for effective drainage, stainless steel crossbracing for stability, and stainless steel legs with adjustable bullet feet for leveling on uneven surfaces. This sink is NSF certified, ensuring it meets strict public health standards.

Crumb Cup Strainer Assembly, with 1-1/2" outlet +$14.23 Lever Handle Drain, 1-1/2" or 2" IPS connection +$153.36 Lever Handle Drain, 2" IPS connection +$153.36 Lever Handle Drain, with 2" IPS connection & overflow +$312.41 Rotary Drain, nickel-plated solid brass, with 1-1/2" or 2" NPS connection +$259.28 Twist Handle Drain, 1-1/2 or 2" NPS connection +$160.31 Twist Handle Drain, 2" NPS connection +$160.31 Twist Handle Drain, with overflow, 2" NPS connection & overflow +$363.31 Twist brackets for 3 comp 412, 414 & 314 sinks +$58.18

Faucet, 12" long, splash-mounted mixing faucet, 8" centers, swing nozzle, heavy duty +$355.72 Faucet, 12" long, splash-mounted mixing faucet, 8" centers, swing nozzle, NSF +$147.03 Faucet, 14" long, splash-mounted mixing faucet, 8" centers, swing nozzle, heavy duty +$360.15 Faucet, 14" long, splash-mounted mixing faucet, 8" centers, swing nozzle, NSF +$152.41 Faucet, 19" long, splash-mounted mixing faucet, 8" centers, double-joint nozzle (NOT available on 1-compartment sinks up to 22" long) +$399.36 Faucet, 8" centers, splash-mounted, 16" spout (NOT available on 1-compartment sinks up to 22" long), NSF +$153.36 Faucet, 8" centers, splash-mounted, 8" spout, NSF +$144.19 Faucet, splash-mounted, 8" OC, gooseneck +$106.56 Pre-Rinse Spray Unit, splash mount +$736.11 T&S Faucet, splash-mounted, 8" centers, 10" swing nozzle, extra heavy-duty +$393.04 T&S Faucet, splash-mounted, 8" centers, 12" swing spout, extra heavy duty, NSF +$394.30 T&S Faucet, splash-mounted, 8" centers, 14" swing spout, extra heavy duty, NSF +$398.10 T&S Faucet, splash-mounted, 8" centers, 8" swing spout, extra-heavy duty, NSF +$384.82 T&S Pre-Rinse Spray, splash mount 8" centers, with wall bracket, extra heavy-duty +$962.83

Note: 30" & 36" drainboards available upon request

Kit A, Spec-Master includes (2) T&S faucet #313293, add suffix "-F" to model number +$788.29 Kit B, Spec-Master includes (2) T&S faucet #313293 & (3) lever waste, add suffix "-FD" to model number +$1,244.88 Kit C, Spec-Master includes (2) T&S faucet #313293 & (3) lever waste with overflow, add suffix "-FDO" to model number +$1,725.82 Kit D, Spec-Master includes (2) T&S faucet #313293 & (3) twist handle drain, add suffix "-FDT" to model number +$1,269.23 Kit E, Spec-Master includes (2) T&S faucet #313293 & (3) twist handle drain with overflow, add suffix "-FDOT" to model number +$1,876.33

Additional Information

Brand	Eagle Group
Number of Drainboards	1
Certifications	NSF
Drainboard Types	Right
Gauge	14 Gauge
Number of Compartments	3
Leg Construction	Stainless Steel Legs
Drainboards	With Right-hand Drainboard
Material	Stainless Steel
Width (in)	109.5
Height (in)	44.5
Depth (in)	31
Weight	157.00
