IMC/Teddy ASFT-1296-PFG

Description

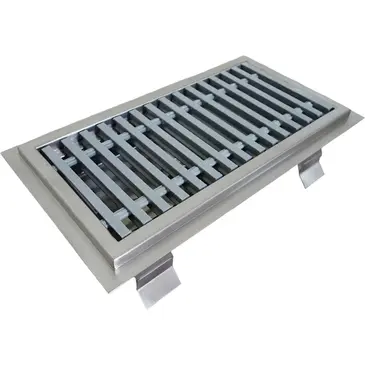

The IMC/Teddy ASFT-1296-PFG is a high-performance anti-spill floor trough designed for efficient drainage. Measuring 96 inches in width and 12 inches in depth, it features a 6-inch deep receptacle that effectively collects and channels water. The trough is equipped with a 4-inch OD tailpiece for seamless plumbing integration. Its durable construction includes a stainless steel beehive strainer made from 14-gauge 304 stainless steel with a brushed satin finish, ensuring both functionality and aesthetic appeal. The pultruded fiberglass grating in grey provides a robust surface while maintaining safety and slip resistance. This product is NSF certified and proudly made in the USA, making it a reliable choice for various commercial and industrial applications.

Price as individual troughs and add for each weld or extension. +$313.00

Beehive strainer for box drain +$167.00 Box type drain +$216.00 Basket Strainer with Pull-Out Handle & Chain +$161.00

Non-standard depth, up to 12" deeper (priced per foot) +$288.00 Non-standard depth, up to 2" deeper (priced per foot) +$151.00 Non-standard depth, up to 4" deeper (priced per foot) +$185.00 Non-standard depth, up to 8" deeper (priced per foot) +$219.00

Scrap tray, 20" long (price per foot) +$242.00 Scrap tray, 12" long, up to 18" wide (price per foot) +$162.00

Angle frame trough, 14 gauge stainless steel, for 12" width trough, (price per foot) +$70.00

Seepage Flange with Clamping Ring, for waterproof membrane (includes screws), for 12" wide troughs (priced per foot) +$265.00

Seepage holes with flanges, for 12" width trough, (price per foot) +$162.00

3” OD Tube (each) +$115.00 3-1/2” OD Tube (each) +$115.00 5” OD Tube (each) +$115.00 6” OD Tube (each) +$115.00 8” OD Tube (each) +$115.00

Additional Information

Brand	IMC/Teddy
Made in	USA
Certifications	NSF
Gauge	14 Gauge
Width (in)	96.00
Height (in)	12.25
Depth (in)	12.00
Weight	208.00
