IMC/Teddy ASFT24-35

Description

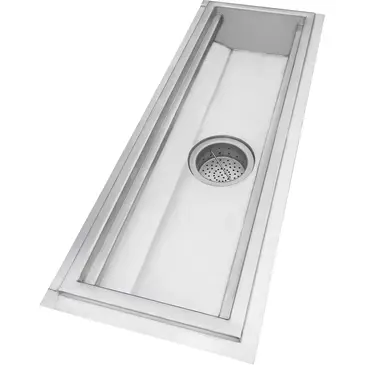

The IMC/Teddy ASFT24-35 is an anti-spill floor trough designed for efficient drainage in various environments. Constructed from durable 14-gauge 304 stainless steel, it measures 420 inches wide, 24 inches deep, and 6 inches in depth. The trough features a basket strainer to effectively capture debris, ensuring optimal flow and reducing maintenance. It is equipped with a 6-1/2 inch waste outlet, facilitating easy connection to drainage systems. Ideal for commercial and industrial applications, this floor trough combines functionality with robust construction for long-lasting performance.

Price as individual troughs and add for each weld or extension. +$313.00

Beehive strainer for box drain +$167.00 Box type drain +$216.00 Basket Strainer with Pull-Out Handle & Chain +$161.00

Non-standard depth, up to 12" deeper (priced per foot) +$288.00 Non-standard depth, up to 2" deeper (priced per foot) +$151.00 Non-standard depth, up to 4" deeper (priced per foot) +$185.00 Non-standard depth, up to 8" deeper (priced per foot) +$219.00

Scrap tray, 20" long (price per foot) +$242.00 Scrap tray, 12" long, up to 18" wide (price per foot) +$162.00

Angle frame trough, 14 gauge stainless steel, for 24" width trough, (price per foot) +$104.00

Seepage holes with flanges, for 24" width trough, (price per foot) +$208.00

3” OD Tube (each) +$115.00 3-1/2” OD Tube (each) +$115.00 5” OD Tube (each) +$115.00 6” OD Tube (each) +$115.00 8” OD Tube (each) +$115.00

Seepage Flange with Clamping Ring, for waterproof membrane (includes screws), for 24" wide troughs (priced per foot) +$334.00

Additional Information

Brand	IMC/Teddy
Gauge	14 Gauge
Width (in)	420.00
Height (in)	6.00
Depth (in)	24.00
Weight	630.00
