IMC/Teddy CFT30-11-SG

Description

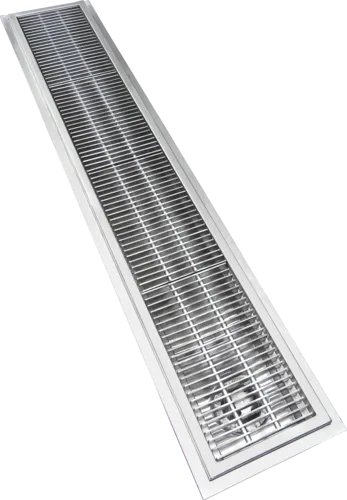

The IMC/Teddy CFT30-11-SG Floor Trough is designed for efficient drainage in various settings. Measuring 132 inches in width, 30 inches in depth, and 4 inches in depth, this floor trough is constructed from durable 16-gauge 304 stainless steel, ensuring longevity and resistance to corrosion. It features an integrated drain for optimal water flow management and is equipped with subway grating (SG) for enhanced safety and functionality. Ideal for commercial and industrial applications, this floor trough combines practicality with a sleek design.

Price as individual troughs and add for each weld or extension. +$313.00

31" to 36" width in lieu of standard (please specify width) +$494.00 37" to 48" width in lieu of standard (please specify width) +$610.00 49" to 60" width in lieu of standard (please specify width) +$729.00 61" to 72" width in lieu of standard (please specify width) +$852.00

Beehive strainer for box drain +$167.00 Box type drain +$216.00 Basket Strainer with Pull-Out Handle & Chain +$161.00

Lint Screen for Laundry Trough +$471.00

Non-standard depth, up to 12" deeper (priced per foot) +$288.00 Non-standard depth, up to 2" deeper (priced per foot) +$151.00 Non-standard depth, up to 4" deeper (priced per foot) +$185.00 Non-standard depth, up to 8" deeper (priced per foot) +$219.00

Scrap tray, 20" long (price per foot) +$242.00 Scrap tray, 12" long, up to 18" wide (price per foot) +$162.00

Shallow 2" trough +$313.00

Angle frame trough, 14 gauge stainless steel, for 30" width trough, (price per foot) +$115.00

Seepage holes with flanges, for 30" width trough, (price per foot) +$212.00

3” OD Tube (each) +$115.00 3-1/2” OD Tube (each) +$115.00 5” OD Tube (each) +$115.00 6” OD Tube (each) +$115.00 8” OD Tube (each) +$115.00

Seepage Flange with Clamping Ring, for waterproof membrane (includes screws), for 30" wide troughs (priced per foot) +$341.00

Additional Information

Brand	IMC/Teddy
Gauge	16 Gauge
Width (in)	132.00
Height (in)	4.00
Depth (in)	30.00
Weight	374.00
