IMC/Teddy FT-1248-SG-ADA

Description

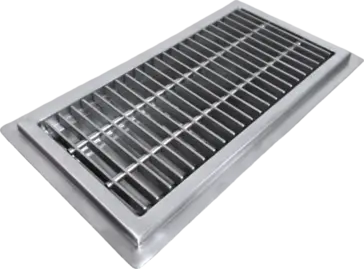

The IMC/Teddy FT-1248-SG-ADA is a durable floor trough designed for efficient drainage. Measuring 48 inches wide and 12 inches deep with a 4-inch receptacle depth, it features a 6-1/2-inch waste outlet equipped with a perforated waste basket and a 4-inch OD tailpiece for optimal waste management. Constructed from 14-gauge 304 stainless steel, this trough boasts a brushed satin finish that enhances its aesthetic appeal while ensuring longevity. The subway grating (SG-ADA) provides a sleek look and is compliant with ADA standards. This product is NSF certified and proudly made in the USA, making it a reliable choice for various applications. Anchor straps are included for secure installation.

Price as individual troughs and add for each weld or extension. +$313.00

Beehive strainer for box drain +$167.00 Box type drain +$216.00 Basket Strainer with Pull-Out Handle & Chain +$161.00

Lint Screen for Laundry Trough +$471.00

Non-standard depth, up to 12" deeper (priced per foot) +$288.00 Non-standard depth, up to 2" deeper (priced per foot) +$151.00 Non-standard depth, up to 4" deeper (priced per foot) +$185.00 Non-standard depth, up to 8" deeper (priced per foot) +$219.00

Scrap tray, 20" long (price per foot) +$242.00 Scrap tray, 12" long, up to 18" wide (price per foot) +$162.00

Angle frame trough, 14 gauge stainless steel, for 12" width trough, (price per foot) +$70.00

Seepage Flange with Clamping Ring, for waterproof membrane (includes screws), for 12" wide troughs (priced per foot) +$265.00

Seepage holes with flanges, for 12" width trough, (price per foot) +$162.00

3” OD Tube (each) +$115.00 3-1/2” OD Tube (each) +$115.00 5” OD Tube (each) +$115.00 6” OD Tube (each) +$115.00 8” OD Tube (each) +$115.00

Additional Information

Brand	IMC/Teddy
Made in	USA
Certifications	NSF
Gauge	14 Gauge
Width (in)	48.00
Height (in)	12.25
Depth (in)	12.00
Weight	96.00
