IMC/Teddy FT18-22-SG-ADA

Description

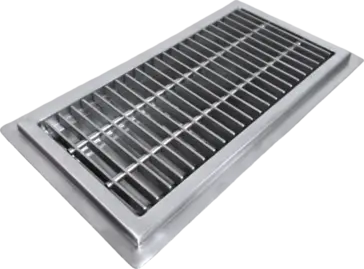

The IMC/Teddy FT18-22-SG-ADA is a high-quality floor trough designed for efficient drainage. Measuring 264 inches in width, 18 inches in depth, and 4 inches in height, this durable trough is constructed from 14-gauge 304 stainless steel, ensuring longevity and resistance to corrosion. It features an integrated drain for optimal water flow management and comes equipped with SG-ADA subway grating, providing a sleek and functional surface. Ideal for commercial and industrial applications, this floor trough combines practicality with a modern aesthetic.

Price as individual troughs and add for each weld or extension. +$313.00

Angle frame trough, 14 gauge stainless steel, for 18" width trough, (price per foot) +$87.00

Beehive strainer for box drain +$167.00 Box type drain +$216.00 Basket Strainer with Pull-Out Handle & Chain +$161.00

Lint Screen for Laundry Trough +$471.00

Non-standard depth, up to 12" deeper (priced per foot) +$288.00 Non-standard depth, up to 2" deeper (priced per foot) +$151.00 Non-standard depth, up to 4" deeper (priced per foot) +$185.00 Non-standard depth, up to 8" deeper (priced per foot) +$219.00

Scrap tray, 20" long (price per foot) +$242.00 Scrap tray, 12" long, up to 18" wide (price per foot) +$162.00

Seepage holes with flanges, for 18" width trough, (price per foot) +$166.00

Seepage Flange with Clamping Ring, for waterproof membrane (includes screws), for 18" wide troughs (priced per foot) +$271.00

3” OD Tube (each) +$115.00 3-1/2” OD Tube (each) +$115.00 5” OD Tube (each) +$115.00 6” OD Tube (each) +$115.00 8” OD Tube (each) +$115.00

Additional Information

Brand	IMC/Teddy
Gauge	14 Gauge
Width (in)	264.00
Height (in)	4.00
Depth (in)	18.00
Weight	616.00
