IMC/Teddy SEC-LFT30-12-SG-ADA

Description

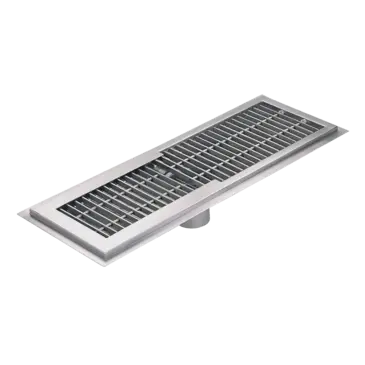

The IMC/Teddy SEC-LFT30-12-SG-ADA is a robust security floor trough designed for durability and efficiency. Measuring 144 inches in width, 30 inches in depth, and 4 inches in depth, this floor trough is constructed from high-quality 14-gauge 304 stainless steel, ensuring resistance to corrosion and wear. It features an integrated drain for effective water management, making it ideal for various applications. The included SG-ADA-SEC security subway grating enhances safety and accessibility, meeting ADA compliance standards. This product is perfect for environments requiring both security and reliable drainage solutions.

Price as individual troughs and add for each weld or extension. +$313.00

31" to 36" width in lieu of standard (please specify width) +$494.00 37" to 48" width in lieu of standard (please specify width) +$610.00 49" to 60" width in lieu of standard (please specify width) +$729.00 61" to 72" width in lieu of standard (please specify width) +$852.00

Beehive strainer for box drain +$167.00 Box type drain +$216.00 Basket Strainer with Pull-Out Handle & Chain +$161.00

Non-standard depth, up to 12" deeper (priced per foot) +$288.00 Non-standard depth, up to 2" deeper (priced per foot) +$151.00 Non-standard depth, up to 4" deeper (priced per foot) +$185.00 Non-standard depth, up to 8" deeper (priced per foot) +$219.00

Scrap tray, 20" long (price per foot) +$242.00 Scrap tray, 12" long, up to 18" wide (price per foot) +$162.00

Angle frame trough, 14 gauge stainless steel, for 30" width trough, (price per foot) +$115.00

Seepage holes with flanges, for 30" width trough, (price per foot) +$212.00

Seepage Flange with Clamping Ring, for waterproof membrane (includes screws), for 30" wide troughs (priced per foot) +$341.00

Additional Information

Brand	IMC/Teddy
Gauge	14 Gauge
Width (in)	144.00
Height (in)	4.00
Depth (in)	30.00
Weight	552.00
