IMC/Teddy SFT12-27

Description

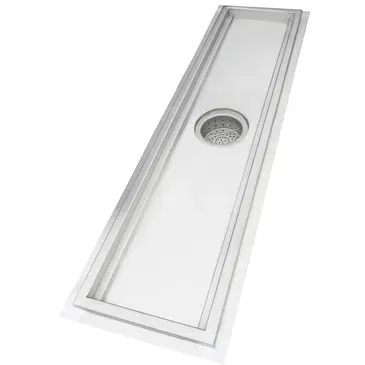

The IMC/Teddy SFT12-27 is a shallow floor trough designed for efficient drainage. Measuring 324 inches in width, 12 inches in depth, and 2 inches in height, this trough is constructed from durable 14-gauge 304 stainless steel, ensuring longevity and resistance to corrosion. It features a basket strainer to effectively capture debris, promoting optimal flow and reducing clogs. The 6-1/2 inch waste outlet allows for easy drainage, while the 4-inch outer diameter tailpiece facilitates straightforward installation. Ideal for commercial and industrial applications, this floor trough combines functionality with robust construction.

Price as individual troughs and add for each weld or extension. +$313.00

Beehive strainer for box drain +$167.00 Box type drain +$216.00 Basket Strainer with Pull-Out Handle & Chain +$161.00

Non-standard depth, up to 12" deeper (priced per foot) +$288.00 Non-standard depth, up to 2" deeper (priced per foot) +$151.00 Non-standard depth, up to 4" deeper (priced per foot) +$185.00 Non-standard depth, up to 8" deeper (priced per foot) +$219.00

Scrap tray, 20" long (price per foot) +$242.00 Scrap tray, 12" long, up to 18" wide (price per foot) +$162.00

Angle frame trough, 14 gauge stainless steel, for 12" width trough, (price per foot) +$70.00

Seepage Flange with Clamping Ring, for waterproof membrane (includes screws), for 12" wide troughs (priced per foot) +$265.00

Seepage holes with flanges, for 12" width trough, (price per foot) +$162.00

3” OD Tube (each) +$115.00 3-1/2” OD Tube (each) +$115.00 5” OD Tube (each) +$115.00 6” OD Tube (each) +$115.00 8” OD Tube (each) +$115.00

Additional Information

Brand	IMC/Teddy
Gauge	14 Gauge
Width (in)	324.00
Height (in)	2.00
Depth (in)	12.00
Weight	216.00
