Jade Range JFLH-04S-T-84

Description

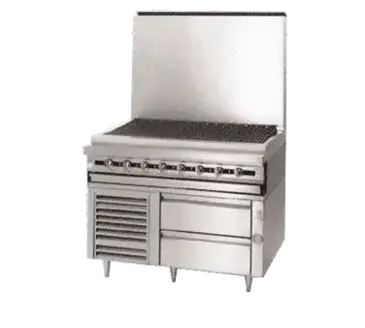

The Jade Range JFLH-04S-T-84 Titan™ Fire & Ice Freezer Base is a robust and efficient equipment stand designed for commercial kitchens. Measuring 84 inches, it features four self-closing drawers, each with a depth of 27-1/4 inches, providing ample storage for your ingredients. The unit accommodates up to seven 12" x 20" x 6" deep pans (pans sold separately), ensuring optimal organization and accessibility. Equipped with face-mounted dial thermometers, this freezer base allows for easy temperature monitoring. The built-in condensate evaporator enhances performance by efficiently managing moisture. Constructed with durable stainless steel, the unit includes 6-inch adjustable legs for stability and easy leveling. Operating at 11.8 amps, this freezer base combines functionality with reliability, making it an essential addition to any professional kitchen.

Bases must be ordered in conjunction with Titan modular range units only Must be ordered with modular top (or combination of) equal to the width of refrigerated/freezer base Remote units not available on casters Electrical junction box, refrigeration line stub out & drain line are all standard rear connections, consult factory for other options NOTE: For application or installation outside of the USA & Canada (contact factory for quote)

Cabinet Base Extensions, 12" +$1,267.32 Cabinet Base Extensions, 18" +$1,557.60 Cabinet Base Extensions, 24" +$1,843.16 Cabinet Base Filler, 6" +$636.02 Padlock hasp, for drawers (per 2 drawer section, lock by others) +$204.14

Compressor mounted on right in lieu of standard left

Dolly Frame, 36", stainless steel with casters +$2,278.58 Dolly Frame, 48", stainless steel with casters +$2,784.80 Dolly Frame, 60", stainless steel with casters +$3,532.92 Dolly Frame, 72", stainless steel with casters +$4,533.56 Dolly Frame, 84", stainless steel with casters +$5,195.54 Dolly Frame, 96", stainless steel with casters +$6,528.94

Correctional Package: Stainless steel lockable control panels, correctional fasteners & stainless steel enclosed security back screen +$2,711.64

NOTE: See model "WARRANTY SHEET" for more warranty information One year parts & NO labor warranty on international orders Two years part & labor warranty

Defrost timer, 120v +$546.34

SSP-84 stainless steel back +$1,921.04 SSP-84 stainless steel bottom +$1,921.04

Flanged feet with anchor bolt holes, per leg +$134.52 Set of six casters (3 with brakes) +$895.62

115v/60/1-ph, standard Contact factory for other voltages

NOTE: See model "WARRANTY SHEET" for more warranty information

One year parts & NO labor warranty on international orders

Two years part & labor warranty

Additional Information

Brand	Jade Range
Width Range	77 to 94 Inches
Construction	Stainless Steel
Refrigerant Type	R-404
Series	Titan™ Fire & Ice™
Compressor Location	Side Mounted
Number of Drawers	4
Sections	2
Voltage	115 Volts
Width (in)	84
Height (in)	25.00
Depth (in)	34.00
Weight	550.00
