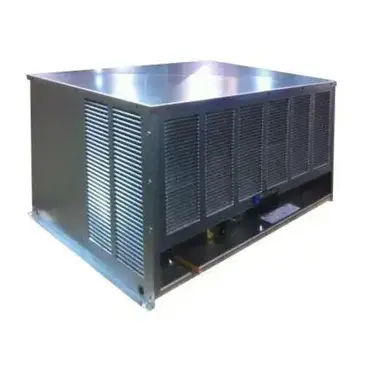

Master-Bilt MHMD005AB

Description

The Master-Bilt MHMD005AB is a high-performance remote refrigeration system designed for medium temperature applications. This pre-assembled condensing unit operates efficiently at 5701 BTU with a suction temperature of +25°F and a cabinet temperature of +35°F, even in ambient conditions up to 100°F. It utilizes environmentally friendly refrigerants R-448A and R-449A, ensuring compliance with modern standards. The unit is equipped with pre-wired and mounted accessories for easy installation. Operating on 208-230V, 60Hz, single-phase power, it draws 15 amps and features a robust 1/2 HP hermetic compressor. Proudly made in the USA, this refrigeration system combines reliability and efficiency for your cooling needs.

Ambient kit

Ultra low ambient kit for refrigeration condensing units to be installed in colder than -10°F ambient conditions +$599.78

Extended Compressor Warranty

Optional Compressor Warranty extending to 5 years +$150.00

What is included

Install note: NOTE: A licensed electrician and refrigeration installer may be required to make all necessary refrigeration and electrical connections
Compressor warranty: 18 months parts and labor warranty, standard
Manufacturer Note: Pricing is valid for 60 days upon receipt of purchase order AND approved drawing (if applicable). Order must ship per our current standard lead time or pricing will be subject to change. All shipments will be FOB Hudson, WI or New Albany, MS.

$2,538.07 / each

Specifications

Made in	USA
Type	Remote Condensers
Voltage	208-230 Volts
Width (in)	22
Height (in)	18
Depth (in)	27

Additional Information

master-bilt-6x20x7-4specsheet-250502mykh0h.pdf
