Master-Bilt QODF8766-C

SKU #: QODF8766-C
Master-Bilt QODF8766-C
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
Description

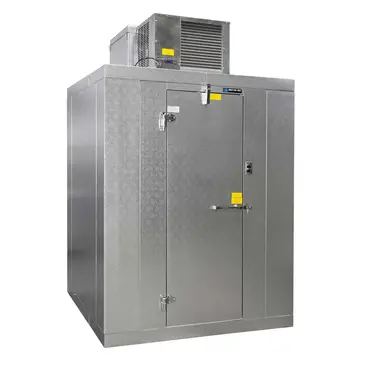

The Master-Bilt QODF8766-C is a modular, self-contained walk-in freezer designed for outdoor use, maintaining a temperature of -10°F. This unit measures 6' x 6' with a height of 8'-7" and includes a durable floor. Constructed with 26-gauge embossed coated steel for both interior and exterior finishes, it ensures longevity and resistance to wear. The self-closing door features a locking deadbolt handle for enhanced security. The membrane roof provides additional protection against the elements. Equipped with a CPF100PC-E-0 R290 Capsule Pak ECO Refrigeration system, this freezer operates efficiently on a 115v/60/1-ph power supply, making it an ideal choice for your cold storage needs.
Trim, viewport, high/low alarm
Standard Compressor Warranty
Ramps & non-skid strips
Flat freight rates
Lift gate delivery
Door size
Oudoor NOTE:
NOTE:
Light options
Capsule Pak refrigeration
What is included
  • Panel warranty: 15 year panel warranty, standard
  • Temperature NOTE:: Freezers are designed for -10 degree room temperature with 90 degree ambient and 100 degree temperature at condensing unit.
  • Install note: NOTE: A licensed electrician and refrigeration installer may be required to make all necessary refrigeration and electrical connections
  • Manufacturer Note: Pricing is valid for 60 days upon receipt of purchase order AND approved drawing (if applicable). Order must ship per our current standard lead time or pricing will be subject to change. All shipments will be FOB Hudson, WI or New Albany, MS.
  • Capsule Pak NOTE:: Capsule Pak™ refrigeration is sized for holding duty only. If the ambient is higher than 100 degrees F or pull down capacity is required, a regular (non-Quick Ship) quote will be needed.
  • Standard Compressor Warranty: 18 month limited parts and labor on Capsule Pak™ refrigeration systems, standard
Door hinging
$29,834.00 / each
?
Specifications
BrandMaster-Bilt Products
Temperature-10
Gauge26 Gauge
CategoryWalk In Freezer, Modular, Self-Contained
Compressor LocationCeiling Mounted
With FloorFloor Included
UsageOutdoor
Voltage208-230 Volts
Width (in)72.00
Height (in)103.00
Depth (in)72.00
Weight1384.00
