Master-Bilt QSB74810-C

SKU #: QSB74810-C
Master-Bilt QSB74810-C
Photo may not represent the actual product.
Always refer to the description and spec sheet (if available).
  • Master-Bilt QSB74810-C
  • Master-Bilt QSB74810-C
  • Master-Bilt QSB74810-C
  • Master-Bilt QSB74810-C
Description

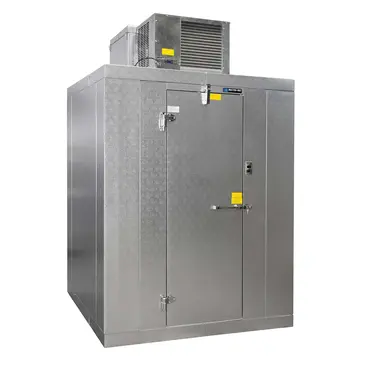

The Master-Bilt QSB74810-C is a modular, self-contained walk-in cooler designed for quick shipping and indoor use. Measuring 8' x 10' with a height of 7'-4", this floorless unit features a durable 26-gauge embossed coated steel finish for both the interior and exterior, ensuring longevity and easy maintenance. The cooler operates at a temperature of +35°F, making it ideal for preserving perishable goods. Equipped with a self-closing door and a locking deadbolt handle, it provides secure access while maintaining optimal temperature control. The QS2 QUALIFIER certification ensures compliance with industry standards. The unit utilizes a CPB075PC-S-0 R290 Capsule Pak refrigeration system, operating on a 115v/60/1-ph power supply, delivering efficient cooling performance.
Ramps & non-skid strips
Flat freight rates
Lift gate delivery
Door size
Standard Compressor Warranty
NOTE:
trim
Light options
Extended Compressor Warranty
Capsule Pak refrigeration
What is included
  • Panel warranty: 15 year panel warranty, standard
  • Temperature NOTE:: NOTE: Coolers are designed for +35 degree room temperature with 90 degree ambient and 100 degree temperature at condensing unit. Less floor coolers assumed no insulation under floor slab.
  • Install note: NOTE: A licensed electrician and refrigeration installer may be required to make all necessary refrigeration and electrical connections
  • Manufacturer Note: Pricing is valid for 60 days upon receipt of purchase order AND approved drawing (if applicable). Order must ship per our current standard lead time or pricing will be subject to change. All shipments will be FOB Hudson, WI or New Albany, MS.
  • Capsule Pak NOTE:: Capsule Pak™ refrigeration is sized for holding duty only. If the ambient is higher than 100 degrees F or pull down capacity is required, a regular (non-Quick Ship) quote will be needed.
  • Standard Compressor Warranty: 18 month limited parts and labor on Capsule Pak refrigeration systems, standard
  • NOTE:: This model may be applicable for our QS2 2-day leadtime program. **Program applies to models with R290 or R449A Capsule Paks, 26” doors and no additional accessories (30" & 36" doors available with a 10-day leadtime). Contact your Inside Sales Specialist for details and qualification requirements.
Door hinging
$28,188.00 / each
?
Specifications
BrandMaster-Bilt Products
Refrigerant TypeR-290
Nominal Depth10 Feet
Nominal Width8 Feet
Compressor LocationTop Mounted
With FloorFloorless
UsageIndoor
Voltage208/230 Volts
Width (in)96.00
Height (in)88.00
Depth (in)120.00
Weight1418.00
Description Options Reviews
Additional Information
brochure-2505035b6s42.pdf brochure-2505035b6s42.pdf master-bilt-qodb56-cspecsheet-2505038idro4.pdf master-bilt-qodb56-cspecsheet-2505038idro4.pdf capsuleecospecsheet-250503oop3z5.pdf capsuleecospecsheet-250503oop3z5.pdf capsulepakecomanual-250503z7axbj.pdf capsulepakecomanual-250503z7axbj.pdf warranty-2505028i27va.pdf warranty-2505028i27va.pdf installationmanual-250502fv5312.pdf installationmanual-250502fv5312.pdf
